Surtronic R50-R80 Series Roundness Measurement System

Taylor Hobson Surtronic R50-R80 Series Roundness Measurement System is a range of roundness products robust enough for the shop floor but accurate for any inspection room.

Inquiry Online

Sales Manager: Mr Li
Cell Phone:18621180929
Email: Tim@labgaegs.com
Working time: 09:00-17:45

Product Detail Instrument Parameter Leave a Message Related Data

Surtronic R-series: R50 - R80

High speed roundness systems for bearings, automotive and precision industries

A range of roundness products robust enough for the shop floor but accurate enough for any inspection room.

Features of Surtronic R50-R80 Series Roundness Measurement System

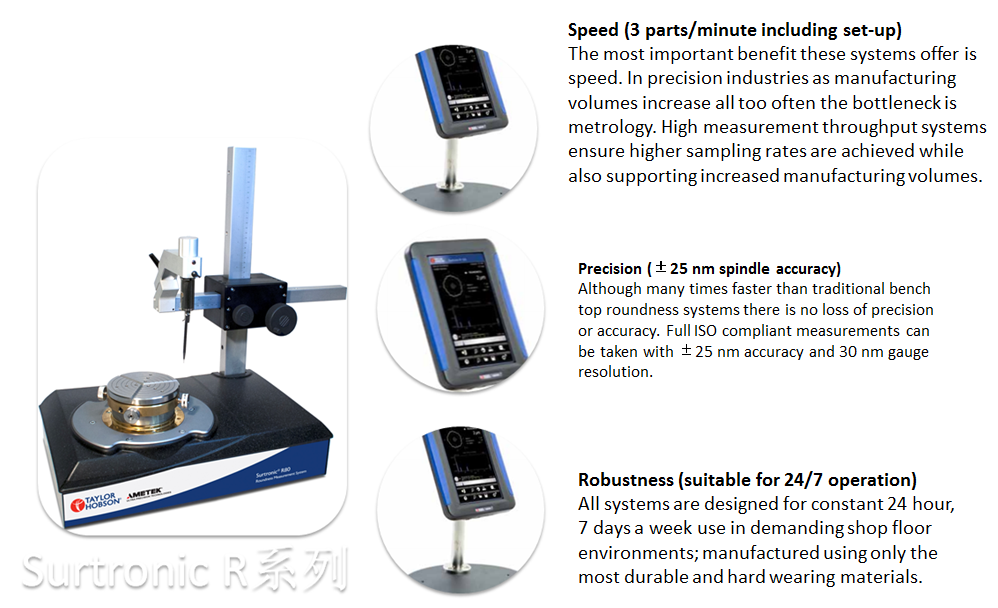

World's highest throughput roundness system...

● Increase manufacturing output ● Reduce part scrappage ● Ensure part traceability ● Improve 'right first time'	What can it measure? The Surtronic R-series instruments are ideally suited to measuring high volume production parts across a wide variety of industries including: Bearing --Races, Balls, Needles and Rollers Automotive --Valves, Con Rods, Pins and Brake Discs Process Control --Grinding, Turning, Milling and Honing and many more...

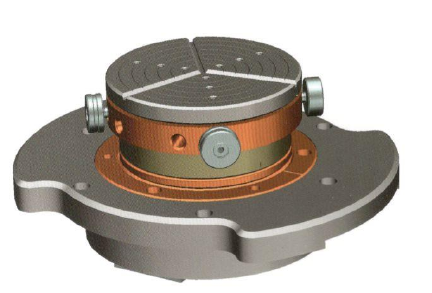

Gauge orientation Using Taylor Hobson’s gauge orientation with its robust locking mechanism changing orientation from roundness to flatness or internal to external only takes a few seconds. Accurate gauging All systems incorporate Taylor Hobson’s accurate and reliable Talymin gauge technology, delivering 6 nm resolution. Rapid centre Rapid Centre avoids valuable cycle time being lost on manual part centring. On most parts precision results are achieved following a very simple and fast loading procedure. Now roundness measurements can be made in less than 30 seconds including part loading, centring, measurement, analysis and results display!
Accessories and standards A full range of accessories and standards are available to support the instrument. These include Magnetic chuck, Rapid Centre fixture, Glass hemisphere, Calibration set, Precision test cylinder, Cresting standard, Stylus kit, Flick standard (20 μm or 300 μm) and replacement air filter modules.
Surtronic R-80, More than a measurement instrument... ... a new measurement concept

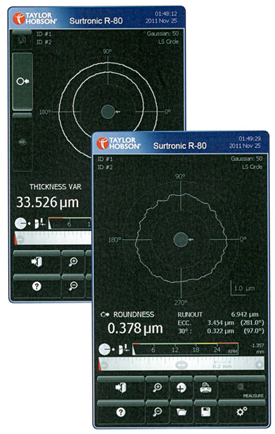

	Easy to use software ● Development in collaboration with key bearing, automotive and precision engineering companies ● Large colour display, easy viewing of results ● Touch screen operation means every features at your fingertips ● Easy analysis setup with single button recall ● Advanced analysis packages for bearing and automotive applications
