How Surtronic DUO does it?

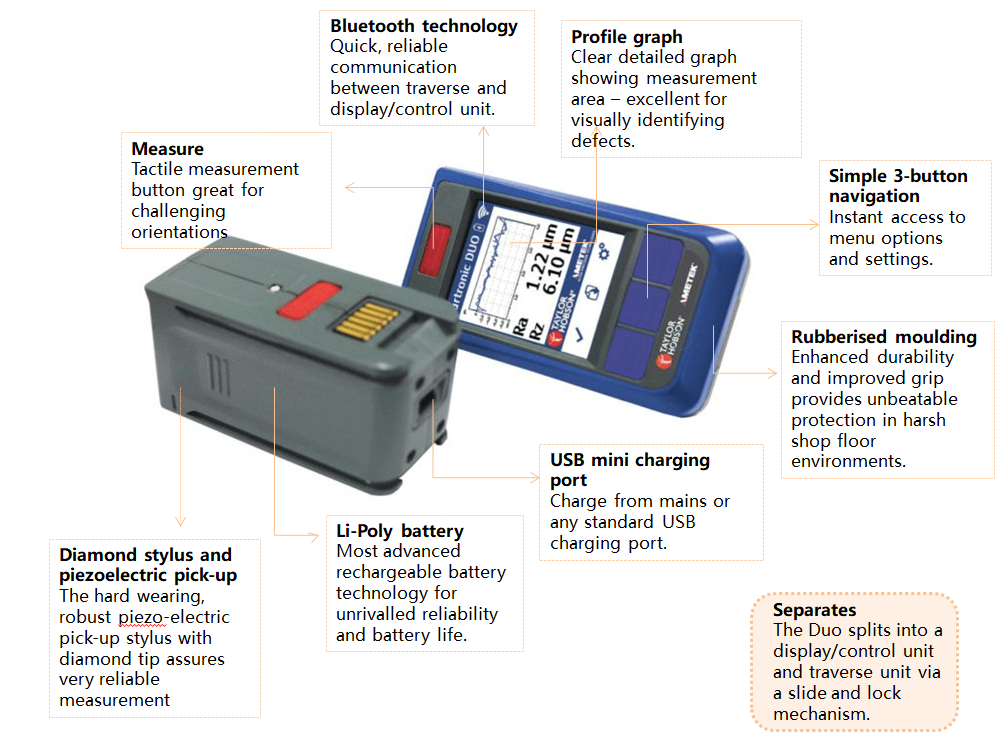

The hard-wearing diamond stylus is drawn across the part with a precision motorised traverse mechanism to ensure that the correct horizontal distance is travelled. Vertical movement of the stylus is detected by a high quality piezo-electric pick-up as it travels across peaks and valleys which converts mechanical movement into electrical signals. The electrical signal is digitised and sent to a microprocessor for instant calculation of surface parameters using standardised algorithms.

Surtronic DUO Functions for Surface Roughness Measuring:

The Surtronic Duo is superior portable surface roughness tester that measure multiple roughness parameters with a 1-button click. Roughness measurement parameters such as Ra, Rz, Rp, Rv and Rt are displayed on a brightly lit intuitive 2.4" LCD colour display. Its rechargeable battery operation makes it a convenient way of performing fast, easy and precise on-the-spot measurements in almost any environment and surface.

Keeping surface roughness measuring simple and fast!

The Surtronic philosophy keeps the process simple. It is the perfect tool for any inspector to check surface roughness even in the most demanding applications.
● Incoming inspections
● Final inspection before shipment
● Process control on the production line
● Checking large components or structures

Tough, fast and reliable handheld roughness testers...

Durable roughness testers for shop floor, industrial & inspection room applications

● Fast and reliable

Simply press the measurement button and in a few seconds a full set of traceable measurement results including a detailed profile graph is displayed.

● Built to last, by design...

Impact resistant rubberised mouldings surround a recessed, Mylar protected high durability screen making the unit robust enough for even the most demanding industrial environments.

● InstantOn

By utilising InstantOn technology these instruments are ready to measure in less than 5 seconds from switching on!

● In situ measurements

Monitor wear and roughness changes in situ during product’s life. E.g. monitoring changes in turbine blade roughness as an early warning sign for defects and efficiency losses.

● User-friendly, not user-hostile!

The Surtronic Duo are as simple and easy-to-use as any SmartPhone. Users have the advantage of the intuitive quick access 3-button menu and its crisp 2.4" daylight readable industrial colour LCD screen

● Bluetooth connectivity

This next generation bluetooth technology boasts super efficient connectivity allowing wireless communication between the display unit and traverse unit.

● Built for power...

Powered by heavy duty reliable Li-Poly technology, the Surtronic Duo operates 24/7 with over 2000 measurements from a single charge.

Typical Applications of Surtronic DUO Surface Roughness Measuring Instrument

? Process control – Grinding, milling, turning, honing, polishing, extrusion
? Heavy industry – Shipbuilding, pipelines, sheet steel
? Aerospace – Turbine blades, turbine shafts, wing composites
? Other – Print rollers, flooring, bonding, glass

Surtronic DUO Technical Specifications

Instrument performance	Surtronic Duo Surface Roughness Measuring Instrument
Gauge	Resolution	0.01 μm (0.4 μin)
Measurement	Range(Ra)	Up to 40 μm (1600 μin)
	Range (Rz, Rv, Rp, Rt)	Up to 199 μm (7800 μin)
	Repeatability	2 % of value + noise
	Accuracy	5 % of reading + 0.1 μm (4 μin)
	Noise	0.1 μm (4 μin)
Calibration	Process	Automatic software calibration
	Standard	Able to calibrate to ISO 4287 Roughness Standards
Parameters	Standards	ISO 4287
	ISO 4287 (Roughness)	Ra, Rz, Rp, Rv, Rt, Rz1max, Rsk, Rq, Rku
	ISO 4287 (Primary)	Pa, Pz, Pp, Pv, Pt
Data output	On-screen	Up to 5 results per page, selectable on-screen graph
Battery	Charger	Mini USB 5V 1A 110-240 VAC 50 / 60 Hz
	Charging time	4 hours
Power	Battery life	> 10,000 measurements per charge
	Standby time	5,000 Hours
	InstantOn	Max 5 sec from standby to ready to measure
	Auto-sleep function	5 minutesInstrument capability

For more technical specification of Surtronic DUO, please contact LAB GAGES directly.
