The new FLIR T500 series has everything you need to pinpoint hot spots and troubleshoot potential problems. Equipped with a 180-degree rotating lens platform and a bright 4-inch LCD screen. Equipped with a 180-degree rotatable lens platform and a bright 4-inch LCD display, it helps to diagnose hard-to-reach parts in any environment. Built-in advanced measurement tools, powerful laser-assisted autofocus, and industry-leading image quality ensure faster and easier problem detection and diagnosis.
Inquiry OnlineSales Manager: Mr Li|
High resolution, comfortable operation and excellent performance |
||
|
Make key decisions faster Laser-assisted autofocusing ensures you get a clear focus and the precise temperature readings you need to make fast and reliable decisions. |

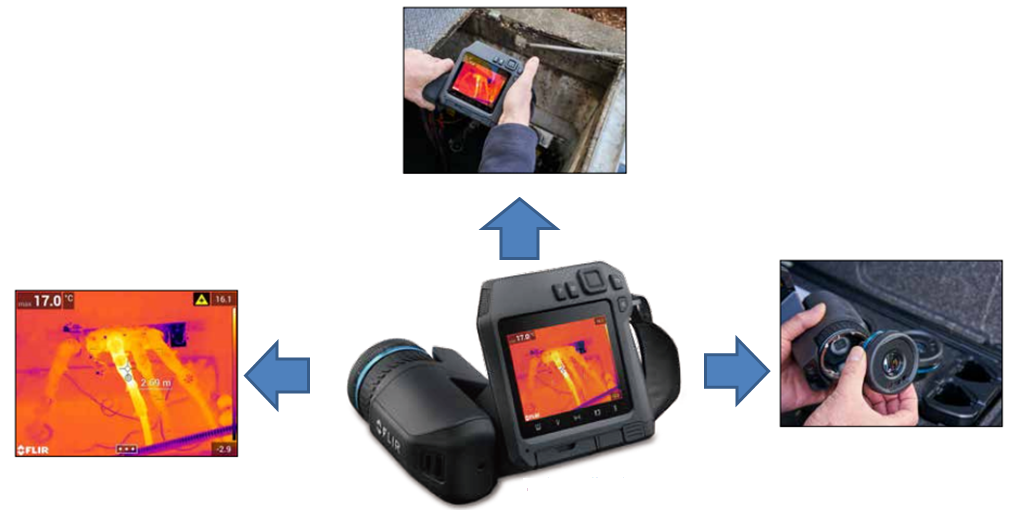

Flexible operation and ergonomic The focusing unit of the FLIR T540 can be rotated 180 °, so you can comfortably and easily image your target at any angle all day. |
Intuitive user interface The capacitive touch screen has an intuitive, easy-to-navigate menu; in addition, you can customize it with two programmable buttons. |
|
Key features ? 180 ° swivel condenser and vivid 4-inch scratch-resistant capacitive touch screen ? IR resolution up to 464 × 348 pixels (161,472 measurement points) ? Fast and accurate laser-assisted autofocus ? Laser distance measurement and area measurement displayed on the screen ? Customizable working folder ? Smart, interchangeable AutoCal lens with automatic calibration ? Industry-leading 2-10 years warranty service |
 |
|

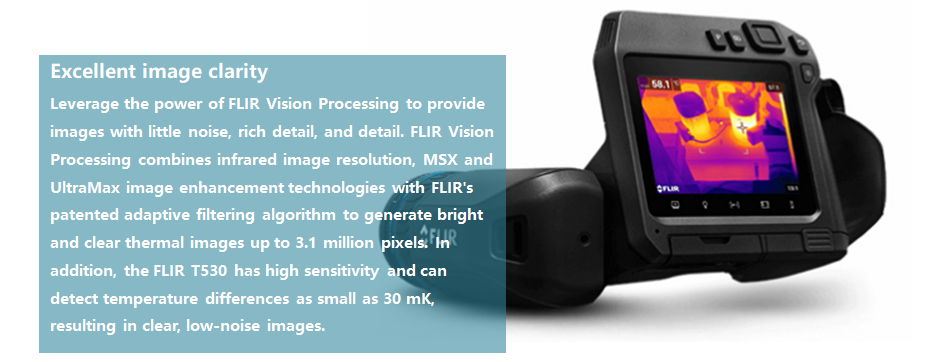

Make key decisions faster Advanced imaging technology and outstanding sensitivity help you make the right decisions quickly ? With FLIR Vision Processing technology supported by powerful MSX, UltraMax? And adaptive filtering algorithm, ensure that the generated thermal image has industry-leading sharpness ? Enable the laser distance measurement function on the screen through the touch button to determine the accessibility of the parts to be repaired ? Thanks to a 4-inch scratch-resistant LCD screen that is 33% brighter and has 4 times higher resolution than comparable thermal cameras, this camera helps to easily identify problems and make quick decisions |
|
Maximize Efficiency, Safety, and Performance Evaluate equipment safely and comfortably from a convenient vantage point to prevent component failure ? Using a condensing device that can rotate 180 ° to comfortably image high and low targets, which can effectively reduce the burden of all-day detection ? Can scan large areas from a safe distance with a resolution of up to 464 × 348 pixels, and provides 161,472 non-contact temperature measurement points ? Thanks to AutoCal optics with auto-calibration function, this camera can share lenses with all series of cameras (from wide-angle to telephoto lens) ? With laser-guided auto-focus function to ensure clear infrared images and accurate temperature readings every time |
|
Designed to make work easier Quick reporting features help you organize results in the field and maximize your productivity ? Quick access to menus, folders and settings with intuitive controls including a responsive touch screen and two programmable buttons ? Enable customers to observe key results in real time through the Wi-Fi streaming function of the FLIR Tools app ? Optimize your workflow with smooth reporting features (such as built-in voice annotations, text annotations with auto-fill and sketches) ? Make accurate and precise files with embedded GPS position data and measurement data from FLIR digital clamp meters and multimeters that support the METERLiNK connection function |
